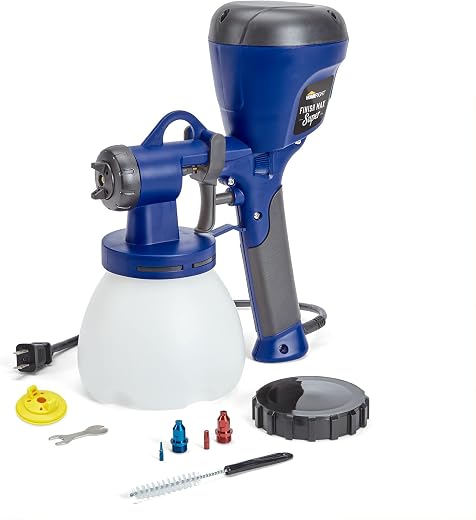

HomeRight Super Finish Max HVLP Paint and Stain Sprayer — 3 Brass Tips, 40 oz Cup

HomeRight Super Finish Max — The $57 Sprayer That Made Cabinet Painting a Weekend Job

The reason people spray rather than brush is not speed. It is that a sprayed finish has no brush marks in it, and on a flat panel — a cabinet door, a dresser front, a set of shutters — brush marks are the entire difference between furniture that looks refinished and furniture that looks repainted. Getting that finish by hand takes a good brush, thinned paint and more patience than most projects survive.

The Super Finish Max is a high-volume, low-pressure turbine sprayer, which means a fan in the body pushes a large volume of air at low pressure through a gravity-fed cup. It is the cheapest way into genuinely sprayed finishes, it has 10,629 ratings at 4.4 stars, and it comes with a learning curve that the listing does not mention anywhere.

Quick verdict: the HomeRight Super Finish Max scores 8.3/10 in this SoftPickr review. It produces a properly sprayed finish for less than the price of two good brushes, provided you accept that half the job is thinning and cleaning.

Key Specifications

What HVLP Means and Why It Matters Indoors

High volume, low pressure describes the trade-off this tool makes. A conventional airless sprayer atomises paint by forcing it through a tiny orifice at very high pressure, which produces a fast, heavy coat and a cloud of overspray that travels across a room. HVLP uses a lot of air at low pressure instead, so the paint arrives with less energy and far more of it stays on the surface.

The practical consequence is transfer efficiency. An airless gun might land sixty per cent of what it sprays; a good HVLP unit lands closer to eighty-five. Indoors, on cabinets or furniture, that difference is the reason you can use this in a garage with a drop sheet rather than needing to mask an entire room. It is also why it is slower on large exterior surfaces.

Thinning Is Not Optional and Nobody Tells You

The single largest source of frustration with this sprayer is people loading undiluted latex wall paint and getting a spattering, spitting mess. A turbine HVLP unit does not have the pressure to atomise full-bodied paint. Latex generally needs thinning by ten to twenty per cent with water; oil-based products need the appropriate solvent. The supplied viscosity cup is the tool for judging this and most buyers ignore it.

Once the material is right, the machine behaves. Chalk paint and milk paint spray beautifully with minimal thinning, stains and sealers need almost none, and thinned latex lays down flat. Budget a test panel and ten minutes at the start of every project to dial in the thinning ratio and the flow dial together — that ten minutes is the difference between an excellent result and a ruined door.

Three Tips and Three Patterns Cover Real Work

The 1.5 mm tip is for thin materials such as stains, sealers and varnish; 2.0 mm is the general-purpose choice for thinned latex and chalk paint; 4.0 mm handles heavier material and textured coatings. Swapping is a two-minute job with the supplied wrench. Having three included rather than sold separately is a meaningful part of the value at this price.

The pattern selector rotates the air cap to give a horizontal fan, a vertical fan or a round spot. Vertical fan for moving side to side across a door, horizontal for moving up and down a stile, round for spindles and detail. Using the right one halves your passes and is the fastest way to improve results without changing anything about the paint.

Where It Sits Against Airless and a Brush

Against a brush, this wins on finish quality on any flat panel and loses on setup and cleanup time. A single kitchen door is faster to brush. Twenty doors is not close — the sprayer will finish them in an afternoon with a uniform surface a brush cannot match.

Against a Graco-class airless unit costing four to five times as much, it loses on speed, on the ability to spray unthinned material, and on large-area work like exterior siding or a fence. It wins on overspray, on weight, on how much paint you waste in the hose, and on the fact that a job needing two litres of paint does not require priming twenty feet of line first.

Limitations and Compromises

Cleaning is the real cost of ownership and it is substantial. Every session ends with disassembling the cup, the pickup tube, the needle, the nozzle and the air cap and cleaning each with the supplied brushes and the appropriate solvent — fifteen to twenty minutes, every time, without exception. Paint left to dry in the needle assembly will ruin the tool, and a very large share of the negative reviews for this product are describing exactly that outcome.

It is corded and it is loud in a specific, whining way, because the turbine is running continuously whether you are pulling the trigger or not. The cord limits reach and gets in the way on ladder work. The noise is not dangerous but it is fatiguing over a long session, and it makes the tool unpleasant to use in an enclosed garage without hearing protection.

The listing is careless about what is in the box. The title advertises three brass tips; the Included Components field lists “1.5mm Spray Tip, 2.0mm 4.0mm Tip”, which reads as though the second and third are one item. Colour is recorded as “Multi”, Material Type as “Brass, Plastic” with no indication of which parts are which, and there is no stated flow rate, turbine wattage or maximum viscosity anywhere. Buy on the reviews, not on the specification.

Cleaning the Needle, Nozzle and Cup

Clean immediately, not later. Fill the cup with water for latex or the correct solvent for oil-based products, spray it through until it runs clear, then disassemble completely. The needle and the nozzle seat are the two surfaces that matter — a film of dried paint on either will produce spitting on the next job that no amount of adjustment will fix. The supplied brush set exists specifically for these two parts.

Store it dry and store it assembled loosely rather than torqued down. Leaving the nozzle tightened onto a damp seat is how the seals deform. Once a season, check the small air holes in the cap with the cleaning pin; they clog invisibly and the first symptom is a fan pattern that has gone lopsided. Never soak the motor housing and never put any part of it in a dishwasher.

Who Should Buy It?

• Anyone refinishing kitchen cabinets, doors, shutters or furniture where brush marks would show.
• DIY decorators who want a sprayed finish without committing to an airless system.
• People spraying stain, varnish or sealer, which need almost no thinning and spray beautifully.
• Occasional users who want three tips and a cleaning kit included rather than sold separately.
• Buyers working indoors or in a garage where airless overspray would be unmanageable.

Look elsewhere if you are spraying a house exterior, a long fence or anything measured in gallons — a Graco-class airless unit will finish in a fraction of the time and will handle unthinned paint. If you only have one or two doors to do, a good brush and a tin of self-levelling paint will cost less and take less time overall once cleaning is counted. And if a twenty-minute cleanup after every session sounds intolerable, it genuinely is intolerable, and you will not use this tool.

SoftPickr Verdict

The HomeRight Super Finish Max earns 8.3/10. It is a lot of capability for $57: three brass tips, three spray patterns, adjustable flow and a 40 oz cup, in a 3.5 lb handheld unit that produces a genuinely sprayed finish on cabinets and furniture.

The compromise is that half the job is not spraying. You will thin every batch of paint and test it, and you will spend fifteen to twenty minutes cleaning at the end of every session, and if you skip either step the tool will punish you for it. Accept that and it is outstanding value. Expect to point and shoot and you will be back at the brush within a weekend.

Price and availability change frequently on Amazon, and prices shown here may be out of date — check the current listing before ordering.

HomeRight Super Finish Max — Frequently Asked Questions

Do you have to thin paint for the HomeRight Super Finish Max?

Latex and most wall paints, yes — typically ten to twenty per cent water. Chalk paint and milk paint need very little. Stains, sealers and varnishes usually need none at all. The supplied viscosity cup measures this properly, and skipping it is the single most common reason people find this sprayer spits or spatters.

How long does cleaning take after each use?

Fifteen to twenty minutes done properly: flush the cup and line with water or solvent, then disassemble and clean the needle, nozzle, air cap and pickup tube with the supplied brushes. It is not optional. Dried paint in the needle assembly is the failure mode behind most of the poor reviews this product receives.

Can it spray a house exterior or a fence?

It can, but slowly. HVLP moves less material per minute than an airless unit and the 40 oz cup needs refilling constantly on large areas. For a shed, a set of shutters or a small deck it is fine. For siding, long fencing or anything measured in gallons, an airless sprayer is the right tool.

What is the difference between the three brass tips?

The 1.5 mm tip suits thin materials such as stains, sealers and varnish; 2.0 mm is the general-purpose choice for thinned latex and chalk paint; 4.0 mm handles heavier and textured coatings. Changing them takes about two minutes with the supplied wrench, and using the right one matters more than any setting on the tool.

Ready to buy? You can check the current price of the HomeRight Super Finish Max on Amazon — the listing shows live pricing and current stock, both of which move around more than the specification does. SoftPickr earns a commission on qualifying purchases at no extra cost to you.
